Setup Maker


To install Miraplacid Text Driver 2011 SDK, follow these steps
As soon as Miraplacid Text Driver SDK installed, you are ready to create a virtual printer driver. Please start Setup Maker from your system Start menu (you will find it in Miraplacid Text Driver SDK folder)

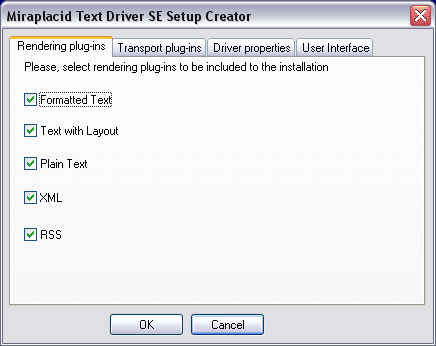

  1. In the Rendering Plug-ins tab select rendering plug-ins you would like to be added to your driver

    Miraplacid Text Driver Setup Maker: Rendering

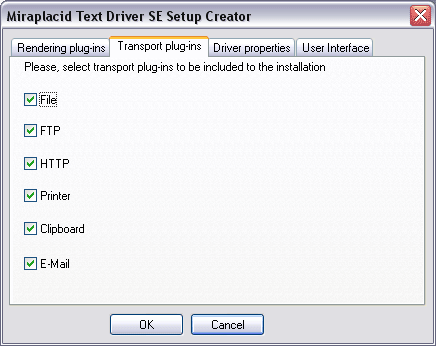

  2. In the Transport Plug-ins tab select transport plug-ins you need.

    Miraplacid Text Driver Setup Maker: Transport

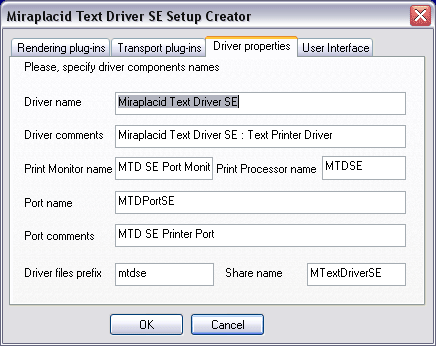

  3. In the Driver Properties tab specify printer driver and printer port namename.

    Miraplacid Text Driver : Setup Maker: Names

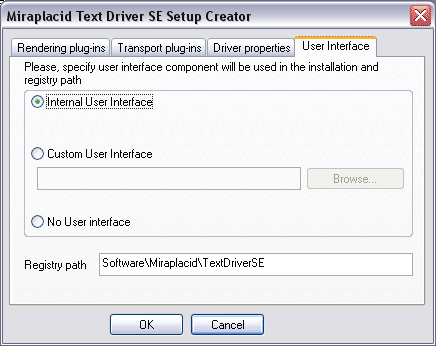

  4. In the User Interface tab choose whether you would like to use built-in user interface or connect your custom UI or you do not need one.

    Miraplacid Text Driver : Setup Maker: User Interface

  5. Click "Ok" button to start driver building process

    Miraplacid Text Driver Setup Maker: Progress

    You virtual printer driver installation package will be build and stored as a file.
    "Save As" dialog will be opened to allow you save the package in right location.

    Build log file is located in temp subfolder of main SDK folder
